Full Automatic Wooden Hanger Making Line include
- Automatic Wood Cutting Machine
- Four-Side Shaving Machine
- Automatic Wooden Hanger Tenon Making Machine
- Automatic Wood Hanger Shape Cutting Machine
- Automatic Pit Hole Making Machine
- Wooden Hanger Copying Shaving Machine
- Wooden Hanger Pieces Assembling Machine
- Hanger Hook Inserting Machine
1. Automatic Wooden Hanger Wood Plate Cutting Machine
Wooden Hanger Wood Plate Cutting Machine is used to cut long wooden
plate to short parallelogram shape for
following wooden hanger making.
Specification
| Model | WH-SC |
| Power | 7(kw) |
| Dimension | 1800*1450*1200(mm) |
| Weight | 800(kg) |
| Feeding Speed | 42 pcs/min |
| Application | Wooden Hanger Flitch Making |
| Voltage | Customized (tri-phase) |
2. Automatic Wooden Hanger Flitches Four Side Shaving Machine
Specification
| Model | WH-M |
| Power | 11(kw) |
| Dimension | 1800*1150*900(mm) |
| Weight | 600(kg) |
| Feeding Speed | 45 pcs/min |
| Application | Wooden Plate Size Shaping |
| Voltage | Customized (tri-phase) |
3. Automatic Wooden Hanger Pieces Tenon Making Machine
Automatic Wooden Hanger Pieces Tenon Making Machine is used to make
tenon on the two side of wooden pieces. These tenon will be used
for the following wooden hanger pieces assembling.
Specification
| Model | WH-T |
| Power | 4.5(kw) |
| Dimension | 1200*1150*1300(mm) |
| Max. Processing Length | 400(mm) |
| Max. Processing Thickness | 60(mm) |
| Max. Processing Width | 25(mm) |
| Weight | 500(kg) |
| Feeding Speed | 45 pcs/min |
| Application | Wooden Hanger Tenon Making |
| Voltage | Customized (tri-phase) |

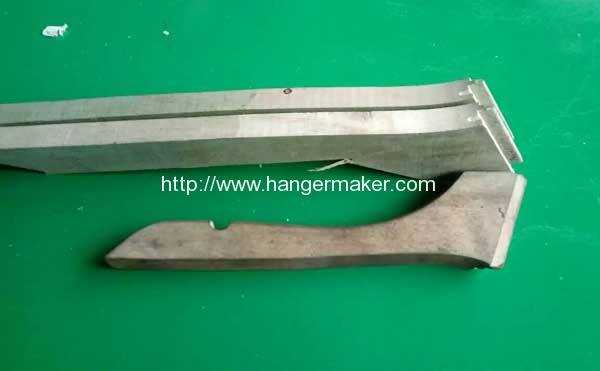

4. Automatic Wood Hanger Shape Sawing Machine
Automatic Wood Hanger Shape Sawing Machine is used to saw wooden
pieces into the following shape. After this machine, we get raw
shape wooden hanger.
Specification
| Model | WH-S |
| Power | 6(KW) |
| Dimension | 1500*1100*1300(mm) |
| Max. Processing Length | 450(mm) |
| Max. Processing Thickness | 20(mm) |
| Max. Processing Width | 60(mm) |
| Weight | 400(mm) |
| Feeding Speed | 45pcs/min |
| Application | Wooden Hanger Shape Cutting |
| Voltage | Customized (tri-phase) |
5. Automatic Wooden Hanger Pit Hole Making Machine
This machine is used to make one pit hole on the wood hanger, so it
will have the feature of auti-slip.
Specification
| Model | WH-PH |
| Power | 3(kw) |
| Dimension | 1600*800*1200(mm) |
| Weight | 900(kg) |
| Application | Wooden Hanger Pit Hole Making |
| Voltage | Customized (tri-phase) |
6. Wooden Hanger Copying Making Machine
Wooden Hanger Copying Making Machine is used to make final wooden
hanger pieces from wooden hanger shape material.
Specification
| Model | WH-C |
| Power | 5.5(kw) |
| Dimension | 1600*1400*1200(mm) |
| Max. Processing Length | 600(mm) |
| Max. Processing Thickness | 150(mm) |
| Max. Processing Width | 100(mm) |
| Weight | 1000(kg) |
| Feeding Speed | 8m/minutes |
| Application | Wooden Hanger Copying Process |
| Voltage | Customized (tri-phase) |
7. Wooden Hanger Wood Pieces Assembling Machine
Pneumatic Wooden Hanger Pieces Joint Assembling machine is used to
assemble wooden pieces into following wooden hanger.
Specification
| Model | WH-A |
| Working Type | Manual |
| Dimension | 600*600*600(mm) |
| Weight | 100(mm) |
| Application | Wood Hanger Pieces Assembling |
8. Wooden Hanger Double Side Sanding Machine
Wooden Hanger Double Side Sanding Machine is used for sanding
wooden hanger double side. It saves a lot of labor cost.
8. Wooden Hanger Hook Inserting Machine
Manual Wooden Hanger Hook Inserting Machine is used to insert hook
on wooden hanger.
Specification
| Model | WH-HP |
| Working Method | Manual |
| Dimension | 450*150*300(mm) |
| Max. Thickness | 50(mm) |
| Max. Width | 100(mm) |
| Total Weight | 10(kg) |
| Application | Metal Hook Insert |
