Automatic Fan Guard Inner Ring Spot Welding Machine

    Buy cheap Automatic Fan Guard Inner Ring Spot Welding Machine from wholesalers

    Buy cheap Automatic Fan Guard Inner Ring Spot Welding Machine from wholesalers
    • Buy cheap Automatic Fan Guard Inner Ring Spot Welding Machine from wholesalers

    Automatic Fan Guard Inner Ring Spot Welding Machine

    Ask Lasest Price
    Brand Name : China
    Certification : CE, ISO9001
    Model Number : Fan Guard Making Machine
    Delivery Time : Within 20Days
    Payment Terms : T/T, Western Union
    Supply Ability : 30set Per Month
    Price : 0-99999
    • Product Details
    • Company Profile

    Automatic Fan Guard Inner Ring Spot Welding Machine

    Fan Guard Production Line Machine List

    1. Automatic Ring Forming Machine
    2. Ring Butt Welding Machine
    3. Automatic inner ring spot welding machine
    4. Fan Guard Outer Ring Welding Machine
    5. Fan Guard Middle Ring Welding Machine
    6. Fan Guard Shape Hydraulic Press Machine
    7. Fan Guard Welding Edge Trimming Machine

    Automatic-Fan-Guard-Inner-Ring-Spot-Welding-Machine

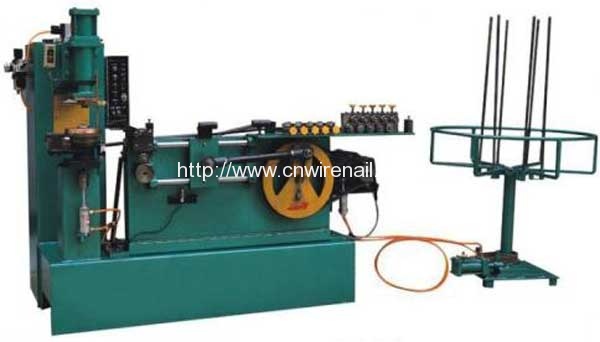

    Automatic Fan Guard Inner Ring Spot Welding Machine is used to do the wire straightening, cutting and weld on the inner smallest rings of fan guard

    Automatic-Fan-Guard-Inner-Ring-Spot-Welding-Machine-Product

    Main technical data:

    • Model: RM-RS-16
    • Suitable diameter: 1.0mm-1.8mm
    • Size of fan guard: 8”-22”(by changing flange moulds)
    • Rate welding power: 16KVA
    • Feeding speed: 0.15M3/min
    • Productivity: 1000-1500 pieces per 8 hours shift (16”, 120 pieces radial wires)
    • Welding current: 6A every welding point
    • Dimension:1600*1000*1300mm
    • Weight: about 480kg

    Features:

    • The controller adopts single chip integrated integrated circuit control system;
    • High precision dial switch, weld primary circuit adopts TRIAC etc advanced technology, to ensure the current output stable and reliable;
    • Adopts optimal design, high-conductivity electromagnetic material make, cause low loss when no-load;
    • This machine can set braking time of braking motor, to make the machine stable when motor stop.

    Working Video
